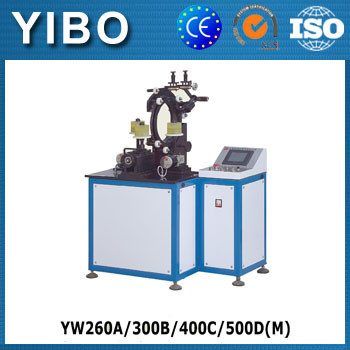

中文版YW-260A/300B/400C/500D(M) CNC Circular Winding Machine for Current Transformer
YW-260A/300B/400C/500D/500DM current transformer toroidal CNC wire winding machine is on the basis of introducing of foreign technology, and according to the domestic transformer industry new workmanship requirements, researching and developing by ourselves, high precision, new type, current transformer dedicated toroidal winding machine. This machine is widely using for winding kinds of toroidal current transformer coils. Especially suitable for the small-lot, varieties wire coils winding.
Main Technique Parameter
| Name/Model | YW-260A | YW-300B | YW-400C | YW-500D/500D(M) |
| Wire diameter | Φ0.5~2.6 mm | Φ0.5~2.6 mm | Φ0.5~3.2 mm | Φ0.5~3.2 mm |
| Finished coil min.inner dia | Φ35 mm | Φ50 mm | Φ60 mm | Φ60 mm |
| Finished coil max.outter dia | Φ260 mm | Φ50 mm | Φ450 mm | Φ550 mm |
| Finished coil max.height | 70 mm | 100 mm | 140 mm | 250 mm |
| Winding max.speed | 100 rp/m | 100 rp/m | 100 rp/m | 100 rp/m |
| Total power | 1.5 KW | 1.5 KW | 1.5 KW | 1.5 KW |
| Total weight | 260 kg | 300 kg | 350 kg | 364 kg |
|
Size (mm) |
600*1000*1200 |
700*1000*1300 |
700*1000*1400 |
850*1000*1500 |
