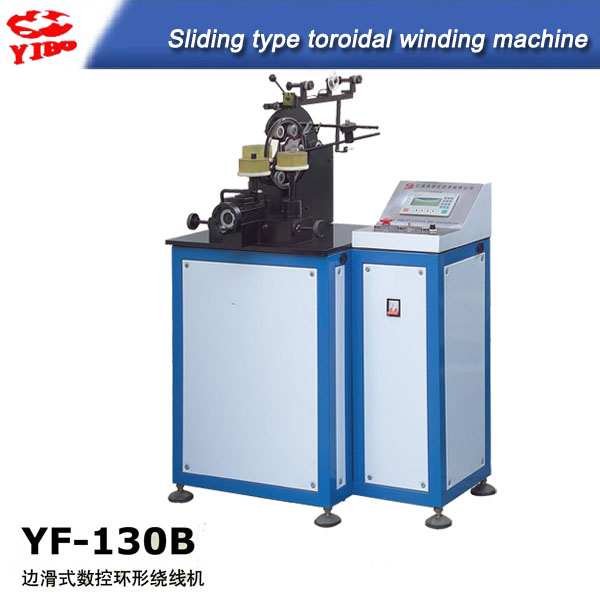

YF-130B sliding type toroidal transformer CNC wire winding machine is on the basis of introducing of foreign technology, and according to the domestic transformer industry new workmanship requirements, researching and developing by ourselves, high precision, new type, current transformer dedicated toroidal winding machine. This machine is widely using for winding kinds of toroidal current transformer coils. Especially suitable for the small-lot, varieties wire coils winding. This product since putted on the market and after multifarious verification, affirm it high-precision, widely using range, simple operation, convenient adjustment, and high universal utility etc advantages. Its stability, reliability, high efficiency gets customers wide acclaim. It is the most advanced CNC wire winding equipment in our domestic market.
| MAIN TECHNICAL PARAMETERS OF YF-130B | |
| Wire diameter | Φ0.12~0.62 mm |
| Min. inner diameter of finished coil | Φ20 mm |
| Max. outer diameter of finished coil | Φ130 mm |
| Max. height of finished coils | 80 mm |
| Max. winding speed | 1000 r/pm |
| Wire storing shuttle width |
3-15 mm optional |
| Rated power | 0.75 KW |
| Max. overall size | 600×900×1300 mm |
