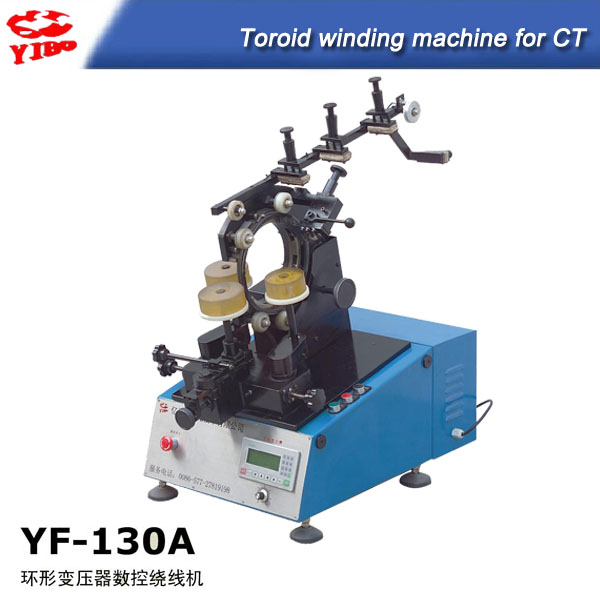

YF-130A circular transformer CNC winding machine is the new generation of winding equipment according to the power industry requirement and presnet manual winding technology of current transformer.
This machine adopts the international most advanced PLC system, it sets the procedures through the display screen, so as to extremely strong the reliable operation of the whole machine. Its eletric parts are designed in modularization, which can reduce the maintenance cost. The main driving operation uses the frequency-conversion speed adjustment mode, which keeps the advantages of short driving chain, large startup torque, wide speed adjustment range, energy saving and low noise. It can realize the continuous stepping stepless adjustment from 0.01mm, and bring the convenient adjustment, high distribution precision and large torque. Due to PLC programming technology, it has the machine tool wire-storage automatic computation, automatic counting,automatic stop, stop memory and so on, and simpifies the operation greatly. This machine has the multi-wire winding mechanism, which can realize the dual-wire or multi-wire multi-layer wunding and improve the production efficiency and product quality.
To sum up , YF-130A circular transformer CNC winding machine is featured with high precision, wide application range, reliable system operation, it is specially used for winding the circular coils of the small batch and many varieties.
Main Technology Parameters
| Diameter range of wire | Φ0.3~1.5mm |
| Min inner diameter of winded coils | Φ30mm |
| Max outer diameter of winded coils | Φ130mm |
| Max height of winded coils | 60mm |
| Max rotation speed | 100r/min |
| Rated power | 0.75KW |
| outline size |
500×800×1000mm |
Winding machine features:
1.Japanise Mitsubishi PLC control High productive,human-computer interaction.
2.Stepping motor speed control for accurate winding,Winding speed can be specified using the front panel keys.
3.User friendly control with touch screen.
4.High-tech Efficiency.
5.Microprocessor based controls, easy for program-setting and handling for operator.
6.Wonderful memory capacity for storing steps of winding.
7.Password protection for administrative settings as well as operators setting.
8.Easily programming of multi-step and multi-speed settings.
9.Special construction in order to avoid machine shaking while winding.
10.Automatically changing winding direction.
11.Dual-wire winding, multi-wire winding, forward and backward winding are all available.
